What we’re building
Meet Apex — our first family of modular power units

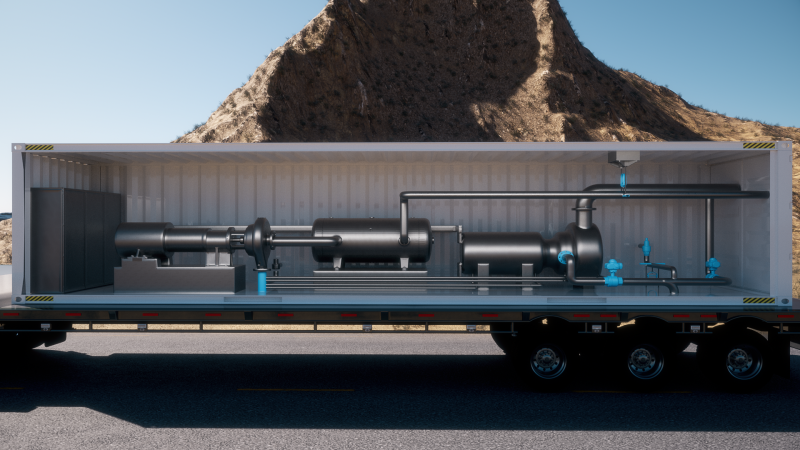

Apex is a containerized Organic Rankine Cycle (ORC) power plant, built from factory-assembled modules to bring utility-scale power online faster and at lower cost than traditional plants.
Each unit delivers multi-megawatt output. Deploy one, or run several in parallel to match the heat source at geothermal and waste heat recovery sites. Our first demo system has already generated over 50 kW in testing.
95% factory assembled
Assembled and fully tested in our factory, so onsite work is limited to connecting the unit.
Our own turbine
A custom multi-stage axial turbine, designed and built in-house.
Competitive efficiency
Matches or beats established systems across a wide range of inlet temperatures.
Air-cooled, no water needed
Closed-loop air cooling lets Apex operate where water is scarce.
High power density
8–10 MW per acre, so more power fits on less land.
Black start and islanding
Optional packages let Apex start without grid power and keep critical loads running through outages.
Apex models: two sizes, one platform
Apex 2500L
Net power output
2.5 MW
Inlet brine temperature
120–190°C
System footprint
0.3 acres, including air-cooled condensers
Apex 5000M
Net power output
5 MW
Inlet brine temperature
190–330°C and beyond*
System footprint
0.5 acres, including air-cooled condensers
*Higher temperatures use a thermal oil intermediary loop.
Product Highlights
Deployment
- Factory-built modules install individually or in parallel with minimal on-site labor
- Transportable to remote sites
- Enables incremental build-out as projects are developed
Operations
- High capacity factor with maintenance performed during operation
- Rapid decommissioning to match thermal resource lifecycle
- Efficient and flexible across a wide range of site conditions

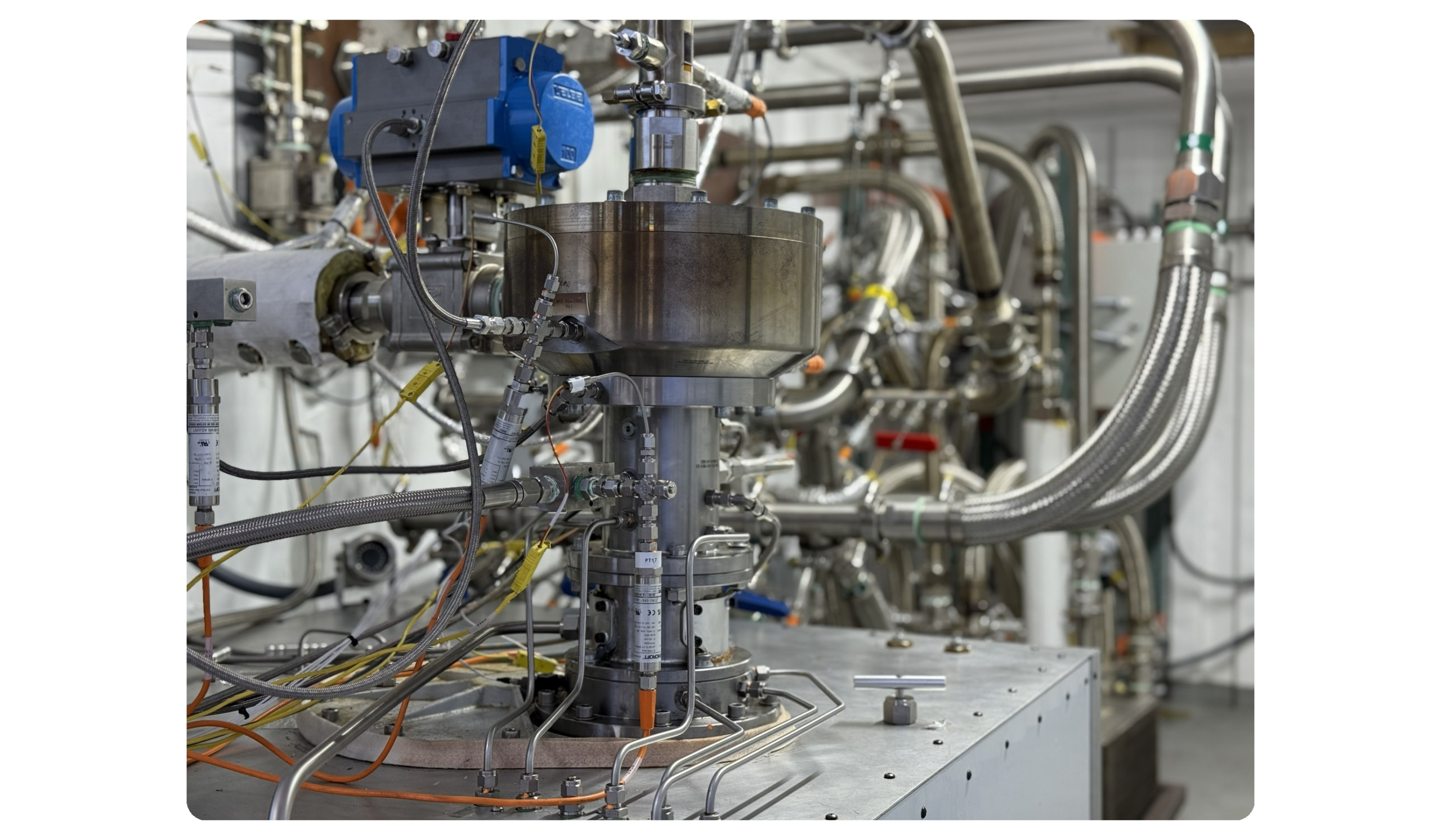

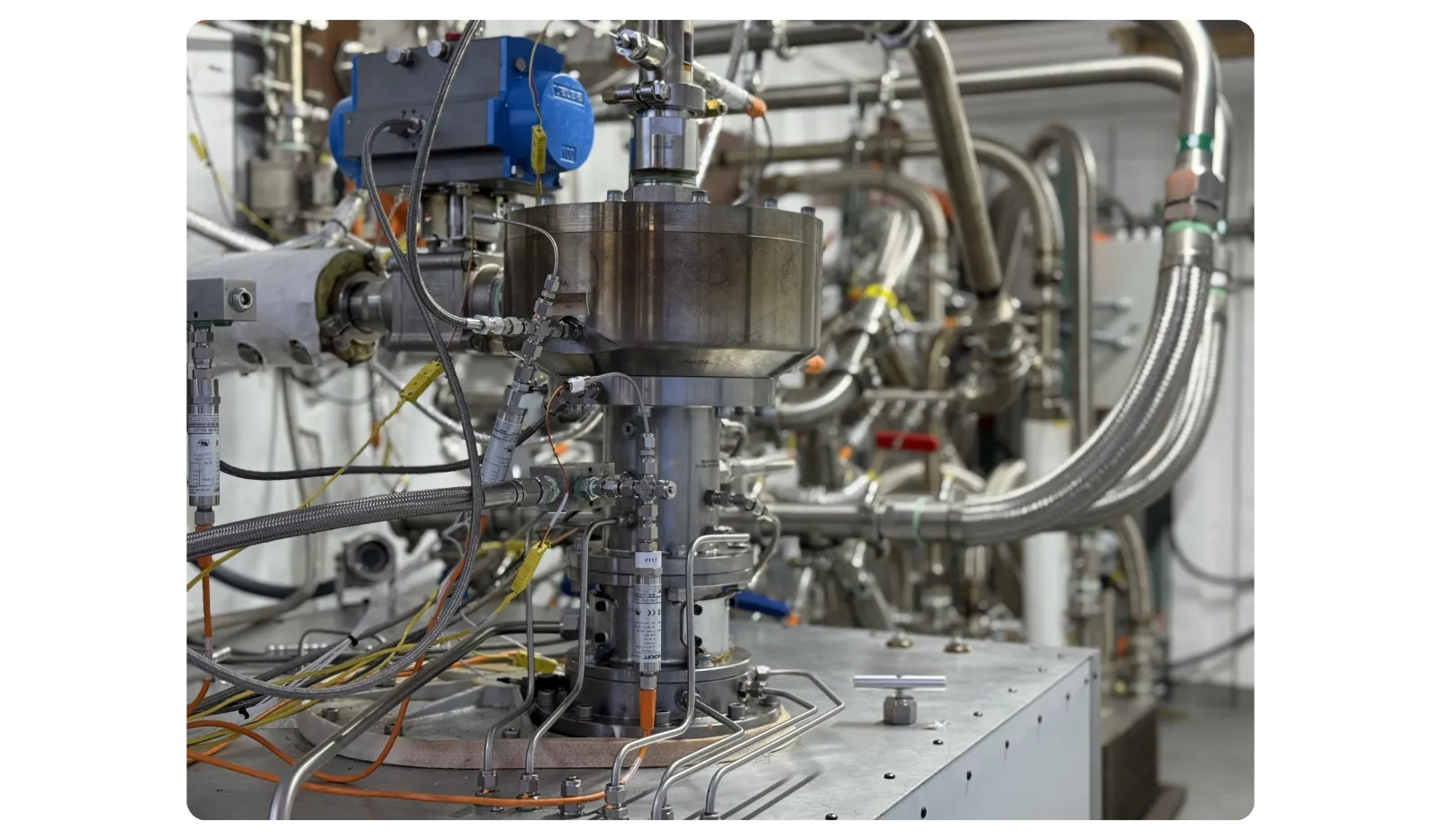

Our demo power plant: over 50 kW generated in testing
Our first demo system has generated over 50 kW of electricity in testing. To get there, we designed and built a fully custom turbine and integrated it into a closed-loop ORC system, validating our design and de-risking each stage of system integration.
The demo unit demonstrates the performance of our core technology — from heat exchange and working fluid cycles to turbine-driven power generation — and serves as the foundation for scaling to multi-megawatt modular plants like Apex.
